Description

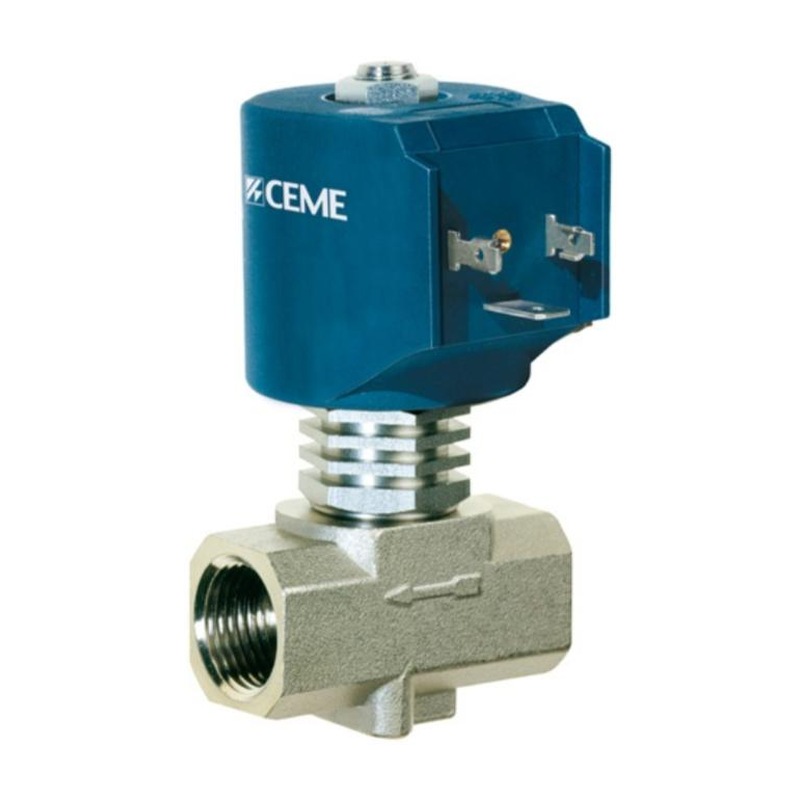

A genuine CEME pilot-operated solenoid valve on a G 3/4 body, the high-flow size used on main steam feeds, larger presses and finishing tunnels. The 21 mm orifice gives a Kv of 7.308 m3/h – close to six times the flow of the 3/8 and 1/2 valves – so it suits lines feeding several machines or a single large consumer.
Like the rest of the pilot-operated range it needs at least 1 bar differential to open and works over a 1 to 10 bar range. PTFE seals are rated to a fluid temperature of 180 C with an ambient limit of 80 C. The coil is AC 230V 50-60 Hz, 24 VA, ED 100% for continuous duty, CE marked.
Before you order: confirm coil voltage and thread size, and check the line holds 1 bar or more. The C77 coil is available separately.
