Description

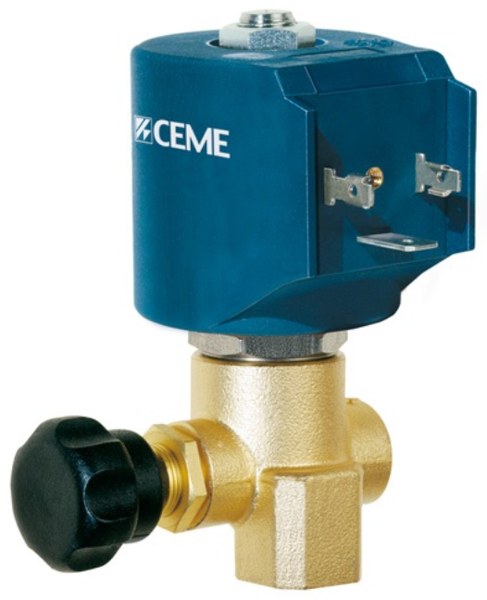

A genuine CEME direct-acting solenoid valve on a G 1/4 body, specified by CEME for steam ironing duty. Direct acting construction means it opens on coil power alone with no minimum pressure required, which is what makes it dependable on iron and table circuits that are switched constantly through a shift.
The 2.8 mm orifice gives a Kv of 0.232 m3/h, and the valve carries the highest pressure rating in this group at a 25 bar maximum differential. EPDM seals are rated to a fluid temperature of 155 C with an ambient limit of 120 C. The Type 778 coil is AC 230V 50 Hz, 18 VA, ED 100% for continuous duty, with VDE and CE approval.
Before you order: check the coil voltage on the machine plate and the connection size. Where the body is still good, the coil is available separately.
