Description

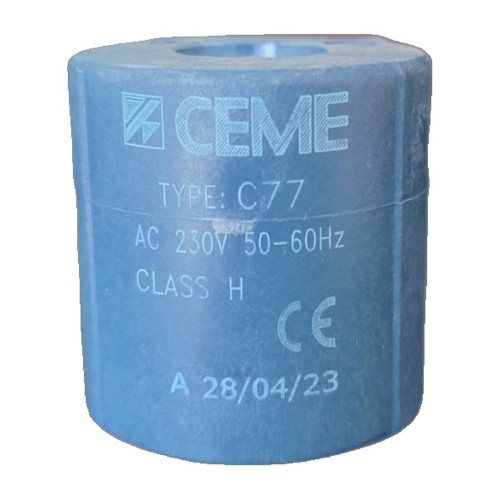

A genuine CEME C77 replacement coil, AC 230V 50/60 Hz, Class H insulation. This is the coil fitted to the 90-series pilot-operated steam valves – the 9013 (3/8), 9014 (1/2), 9015 (3/4) and 9016 (1) bodies.
On a steam valve the coil is usually what fails first: heat and continuous duty age the winding long before the seat or the body wears out. If the valve is not opening but you can hear no click and the body is otherwise sound, changing the coil is the quick and far cheaper repair – the coil lifts off the stem without breaking into the steam line.
Before you order: check the voltage marked on the old coil, not on the machine, because a machine can carry more than one control voltage. The valve body is ordered separately.
